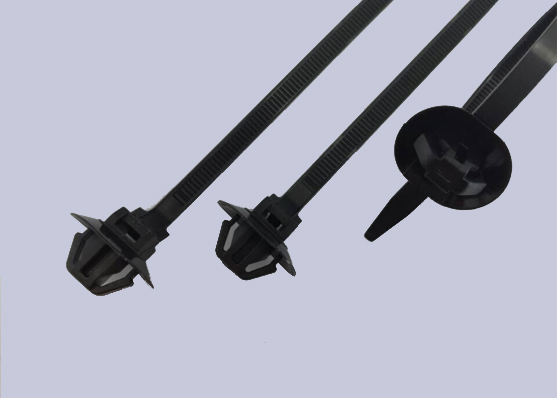

  • Product name: AUTOMOBILE TIES GTP
  • Data name: AUTOMOBILE TIES GTP_AUTOMOBILE TIES AND CONNECTOR CLIPS
One-piece fir-tree design with disc is similar to push mount cable ties but the disc can enhance the stability of fixing and avoid dust and water invasion
Additional cured tab below the buckle will fasten and maintain bundles on the axial.Fir-tree push mount design applied to varied to varied thickness of board or one-side thread hole
Applied to different industries such as automotive,aviation,white goods manufacture,and panel building
Specifications supplied by customers’ order
Material:Nylong 66,UL94 V2
Color: Black,White

Product details

Part No.

Length

mm

Width

mm

Hole Dla

mm

Panel Thickness

mm

Max.Bundle Dia

mm

Min.loop Tensile

Strength  kg(lbs)

Download

GTP-155STB1505.07.0*120.6-2.02222.2(50)Drawing
GTP-160HDB 160 7.1 10.0 0.6-2.0 35 54.4(120) Drawing
