Products
Current location: home pageProducts - PC plate spacer

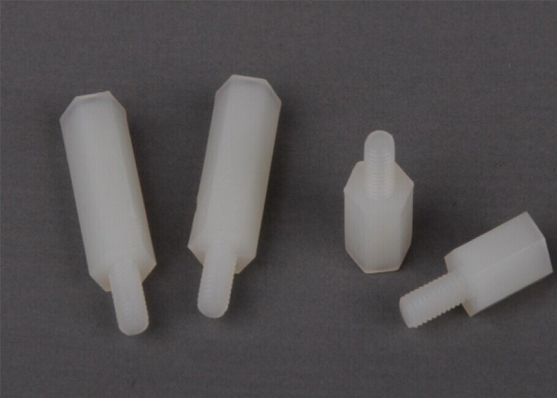

- Product name: TP2.5 SERIES
- Data name: TP2.5 SERIES_PC plate spacer
用途：作为PC板与机板间之固定，一端配合螺丝，另一端配合螺帽使用
材质：尼龙66(UL）
阻燃等级：UL94 V2
颜色：自然
单位：毫米
Product details

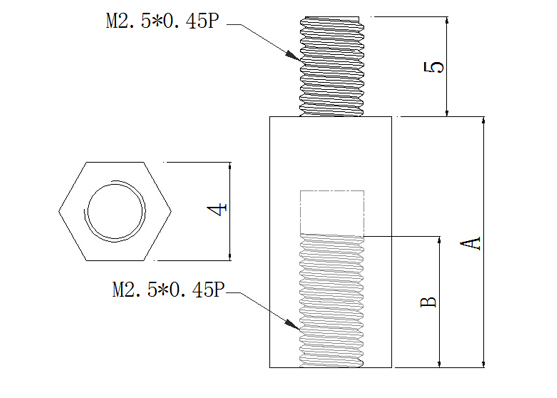

PART NO | A | B | PACKAGE | Download |
| TP2.5-5 | 5.0 | 3.0 | 1000 | Drawing |
| TP2.5-6 | 6.0 | 4.0 | 1000 | Drawing |
| TP2.5-7 | 7.0 | 5.0 | 1000 | Drawing |
| TP2.5-8 | 8.0 | 5.0 | 1000 | Drawing |
| TP2.5-9 | 9.0 | 5.0 | 1000 | Drawing |
| TP2.5-10 | 10.0 | 5.0 | 1000 | Drawing |
| TP2.5-11 | 11.0 | 5.0 | 1000 | Drawing |
| TP2.5-12 | 12.0 | 5.0 | 1000 | Drawing |
| TP2.5-13 | 13.0 | 5.0 | 1000 | Drawing |
| TP2.5-14 | 14.0 | 5.0 | 1000 | Drawing |
| TP2.5-15 | 15.0 | 5.0 | 1000 | Drawing |
| TP2.5-16 | 16.0 | 5.0 | 1000 | Drawing |
| TP2.5-17 | 17.0 | 5.0 | 1000 | Drawing |
| TP2.5-18 | 18.0 | 5.0 | 1000 | Drawing |
| TP2.5-19 | 19.0 | 5.0 | 1000 | Drawing |
| TP2.5-20 | 20.0 | 5.0 | 1000 | Drawing |
| TP2.5-21 | 21.0 | 5.0 | 1000 | Drawing |
| TP2.5-22 | 22.0 | 5.0 | 1000 | Drawing |
| TP2.5-23 | 23.0 | 5.0 | 1000 | Drawing |
| TP2.5-24 | 24.0 | 5.0 | 1000 | Drawing |
| TP2.5-25 | 25.0 | 5.0 | 1000 | Drawing |
| TP2.5-26 | 26.0 | 5.0 | 1000 | Drawing |
| TP2.5-27 | 27.0 | 5.0 | 1000 | Drawing |
| TP2.5-28 | 28.0 | 5.0 | 1000 | Drawing |
